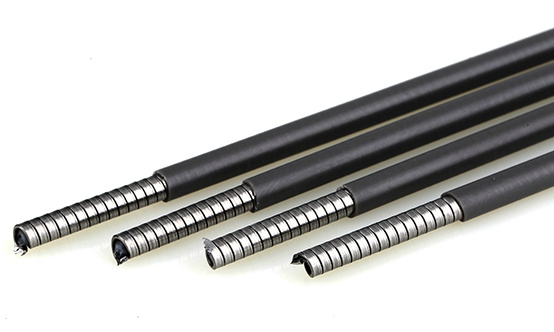

Flat wrap steel cable outer casing is mainly used as an conduit of control cable. Types include spiral outer casing and twin wire outer casing. An extruded plastic liner may or may not be used inside of this type of conduit.
We can make production according to customer's specifications including the material, color, dimension and packaging.
| Size(mm) | Material of inner hose | Size of steel wire(mm) | Flattening thickness of steel wire(mm) | Material of coating | Tolerance of OD(mm) | ID of Inner hose(mm) |
| φ4 | PE\POM\PTFE | 1 | 0.48\0.55 | PVC\PP\PA6 | ±0.05 | 1.5\ 1.4 |
| φ5 | PE\POM\PTFE | 1.1\1.2\1.3 | 0.48\0.55\0.6\0.7 | PVC\PP\PA6 | ±0.05 | 2.2\2.0\1.9 |
| φ6 | PE\POM\PTFE | 1.4 | 0.7 | PVC\PP\PA6 | ±0.05 | 2.4\2.6 |
| φ7 | PE\POM\PTFE | 1.6\1.8 | 0.85\1.0 | PVC\PP\PA6 | ±0.05 | 3 |
| φ8 | PE\POM\PTFE | 1.8\2.0 | 1.0\1.25 | PVC\PP\PA6 | ±0.05 | 3.3\3.6 |
| φ9 | PE\POM\PTFE | 2 | 1.1 | PVC\PP\PA6 | ±0.075 | 4.1 |
| φ10 | PE\POM\PTFE | 2.2 | 1.25 | PVC\PP\PA6 | ±0.075 | 4.6 |
Flat wrap steel cable outer casing can be widely used for vehicles, general machinery, vessel, mechanical control etc.
