Push-pull cable outer casing - Colorful Push Pull Cable Outer Casing -3

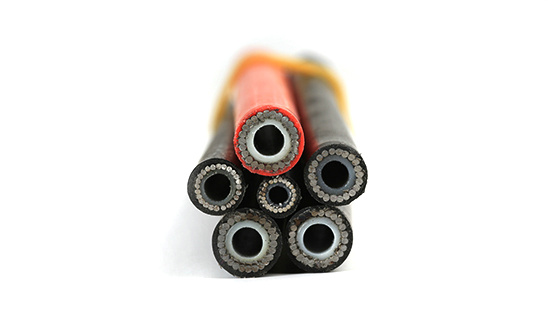

Push-pull cable outer casing

Model Number: Colorful Push Pull Cable Outer Casing -3

INQUIRE NOW

Feature:

Push-pull outer casing is the main part of control cable. This conduit always has a plastic liner. It has several spirally wound strand wire to support and also has a plastic extruded jacket (coating). It has the property of not being burn-in, no cracking, high&low temperature resistance, friction resistance, corrosion resistance, and long service life.

We can make production according to customer's specifications including the material, color, dimension and packaging.

Technical Parameters:

Serial No. Specification mm Inner Dia. mm PCS of Steel Wire Liner Material Coating Material
1 φ4.0 1.5 15 PP/PE/POM/PTFE PE/PVC/PP/PA6
2 φ4.15 1.6/1.8 17 PP/PE/POM/PTFE PE/PVC/PP/PA6
3 φ5.0 2 19 PP/PE/POM/PTFE PE/PVC/PP/PA6
4 φ6.0 2.1 18 PP/PE/POM/PTFE PE/PVC/PP/PA6
5 φ7.0 2.3 19 PP/PE/POM/PTFE PE/PVC/PP/PA6
6 φ8.2 2.7 21 PP/PE/POM/PTFE PE/PVC/PP/PA6
7 φ9.0 3.5/3.8 24 PP/PE/POM/PTFE PE/PVC/PP/PA6
8 φ9.0 4.1/4.2 26 PP/PE/POM/PTFE PE/PVC/PP/PA6
9 φ10.0 3.8/4.2 22 PP/PE/POM/PTFE PE/PVC/PP/PA6
10 φ11.0 4.5/4.8 24 PP/PE/POM/PTFE PE/PVC/PP/PA6
11 φ11.0 5.0/5.2 25 PP/PE/POM/PTFE PE/PVC/PP/PA6
12 φ12.0 5.5 23 PP/PE/POM/PTFE PE/PVC/PP/PA6

Application:

Push-pull cable outer casing can be widely used for vehicles, general machinery, fitness equipment, furniture, sanitary etc.
