PUSH PULL CABLE OUTER CASING

Applicable to our push pull cable outer casing products.

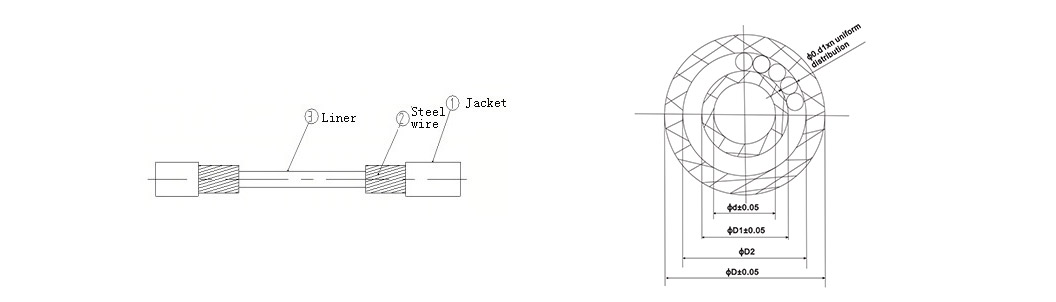

Product Structure

Pull Pull Cable Outer Casing

Technical Specification

1.Material：Steel wire meets requirements of GB699-99，liner and jacket meet requirements of the specified grades；

2.Steel wire winding direction：left handed or right handed, the pitch is only for reference；

3.No floating line phenomenon,and there is a certain straightness and rebound resilience after wire winding;

4.Bending degree：1000mm long product is in a vertical drop at free status,the lower end deviation is within 200mm;

5.Jacket is smooth with uniform thickness, and no defects as impurities, bubble, embossment ect.;

6.Reducibility: fix casing horizontally, extend 500mm long and bend front end to 90 degree angle, then relax out, and later the bended part must recover to less than 45 degree angle horizontally with surface;

7.Cutted product with length of 1000mm, its inner tube shrinkage should be within 1mm;

8.Jacket’s thickness deviation (same section：Max. wall thickness minus Min. Wall thickness) is under 0.15mm.

Technical Parameter (mm)

No. Model No. OD ID Liner Steel wire strand structure Jacket
OD ID Material Color OD PCS Twist Direction Lay Length Material Material Color
1 Z4015A2301 Φ4.0+0.20 Ф1.5+0.1 Φ2.1±0.05 Ф1.55+0.1 0 HDPE Grey Φ0.5 16 Z 65 45#bright PP G700 Black
2 Z4118A2301 Φ4.25+0.05-0.05 Ф1.8±0.05 Φ2.3±0.05 Ф1.8±0.05 HDPE Grey Φ0.5 17 Z 100 45#bright PP EPS30R Black
3 Z4116A1301 Φ4.15+0.05-0.05 Ф1.6±0.05 Φ2.3+0.10 Ф1.65±0.05 HDPE Natural
color		 Φ0.5 17 Z 100 45#bright PP EPS30R Black
4 Z5020A1301 Φ5±0.1 Ф2+0.05-0.1 Ф2.9+0.05-0.1 Ф2+0.05-0.10 HDPE Natural
color		 Φ0.56 18 Z 51.7 60#
Galvanized		 PA6 Black
5 Z5022C1301 Φ5+0.1 0 Ф2.2+0.1 0 Ф2.95+0.10 Ф2.25+0.1 0 POM Natural
color		 0.66 16 Z   45#bright PP G700 Black
6 Z5020A1302 Φ50-0.15 Ф2+0.1 0 Ф2.95+0.10 Ф2.05+0.1 0 HDPE Natural
color		 Φ0.5 20 Z   45#bright PP G700 Black
7 Z5020A1303 Φ50-0.1 Ф2+0.05-0.1 Ф2.9+0.05-0.1 Ф2+0.10 HDPE Natural
color		 Φ0.56 19 Z 100 60#bright PP EPS30R Black
8 Z5020A1304 Φ5±0.05 Ф2+0.10 Ф2.9+0.05-0.1 Ф2+0.10 HDPE Natural
color		 Φ0.55 19 Z 100 60#bright HDPE Black
10 S5020A1201 Φ5±0.1 Ф20-0.1 Ф3+0.10 Ф2.050-0.1 HDPE Natural
color		 Φ0.3 12     Q235Iron
wire		 PP G700 Grey
11 Z5020A1305 Φ5±0.1 Ф2±0.1 Ф2.9+0.05-0.1 Ф2±0.1 HDPE Natural
color		 Φ0.54 18 Z 51.7 60#bright PP G700 Black
13 Z5020A1306 Φ5±0.1 Ф2+0.05-0.1 Ф2.9+0.05-0.1 Ф2+0.05-0.10 HDPE Natural
color		 Φ0.56 18 Z 50±5 60#
Galvanized		 PA6 Black
14 Z5020A1307 Φ5±0.1 Ф2±0.1 Ф2.9+0.05-0.1 Ф2±0.1 HDPE Natural
color		 Φ0.54 18 Z 50±5 60#bright PP  Black
15 Z9035F1301 Ф90-0.15 Ф3.5+0.10 Ф5.8+0.05-0.1 Ф3.6+0.10 PBT Natural
color		 Φ0.8 24 Z 190±10 SWRH62A PP Black
16 Z9035F1401 Ф90-0.15 Ф3.5+0.10 Ф5.8+0.05-0.1 Ф3.6+0.10 PBT Natural
color		 Φ0.8 24 Z 190±10 SWRH62A PP Black
17 HT1703060-160 Ф16±0.2 Ф7+0.10 Ф10.9+0.05-0.1 Ф7.1+0.10 HDPE Grey Φ1.2 31 Z 190±10 70 PP Black
18 HT1703060-090 Ф9±0.2 Ф4+0.10 Ф5.55+0.05-0.1 Ф4.1+0.10 HDPE Grey Φ1.0 20 Z 190±10 70 PP Black
19 HT1703060-110 Ф11±0.2 Ф7.5+0.10 Ф7.55+0.05-0.1 Ф5.1+0.10 HDPE Grey Φ1.0 26 Z 190±10 70 PP Black
20 HT1703060-140 Ф14.3±0.2 Ф6+0.10 Ф9.7+0.05-0.1 Ф6.1+0.10 HDPE Grey Φ1.2 28 Z 190±10 70 PP Black

Steel Wire Chemical Components

Mark Standard C Si Mn P S Ni Cr Cu
30# GB699-99 0.27~0.34 0.17~0.37 0.50~0.8 <0.035 <0.035 <0.3 <0.25 <0.25
45# GB699-99 0.42~0.5 0.17~0.37 0.50~0.8 <0.035 <0.035 <0.3 <0.25 <0.25
60# GB699-99 0.57~0.65 0.17~0.37 0.50~0.8 <0.035 <0.035 <0.3 <0.25 <0.25
65# GB699-99 0.62~0.7 0.17~0.37 0.50~0.8 <0.035 <0.035 <0.3 <0.25 <0.25
70# GB699-99 0.67~0.75 0.17~0.37 0.50~0.8 <0.035 <0.035 <0.3 <0.25 <0.25

Property:

Diameter(Φ) Diameter. Tolerance Diameter Deviation Number Of Torsions Tensile Strength(N/ mm2) Code
0.5 0.01-0.01 <0.005 >35 950~1150 SWRH32 or 30# steel wire
0.5 1100-1300 45# steel wire
0.56 1500~1660 SWRH62A or 60# Steel wire
0.6 1600-1850
0.66 1600-1850
0.7 0.02-0.01 <0.015 1600-1850
0.8 1650~1900
0.9 1650~1900
1 1650~1900

Note: Diameter deviation refers to steel wire max. diameter minus min. Diameter(same section).
