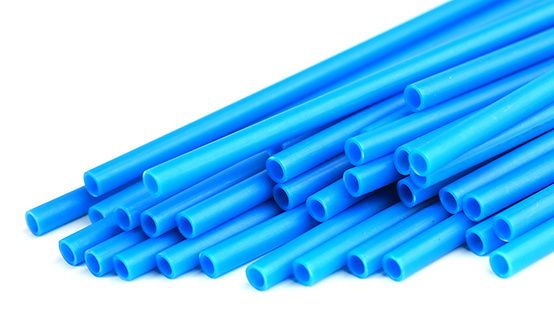

High Precision Small Diameter Plastic Tube - PE blue tube

High Precision Small Diameter Plastic Tube

Model Number: PE blue tube

INQUIRE NOW

Feature:

Resisting sticking, cracking, corrosion and breakdown.

Enduring high&low temperature and voltage.

Excellent lubricating property.

Virgin material.

Remarks: Multi-layer plastic tube is made of several materials.

We can make production according to customer's specifications including the material, color, dimension and packaging.

Technical Parameters:

Material OD(mm) ID(mm) MIN. Thickness(mm) Tolerance of Thickness (mm) Tolerance of ID/OD(mm)
PE 2.1-12.0 1.5-10 ≥0.2 ≤0.10 ≥±0.05
POM 2.5-12.0 1.5-10 ≥0.20 ≤0.10 ≥±0.05
PP 3.0-12.0 2.5-10 ≥0.25 ≤0.10 ≥±0.05
PBT 3.0-12.0 2.4-10 ≥0.30 ≤0.10 ≥±0.05
PA6 5.0-12.0 4.0-10 ≥0.5 ≤0.20 ≥±0.1
PA66 4.0-12.0 3.2-10 ≥0.35 ≤0.10 ≥±0.075
PA12 4.0-12.0 3.2-10 ≥0.35 ≤0.10 ≥±0.1
TPU 5.0-12.0 4.0-10 ≥0.5 ≤0.2 ≥±0.25
PTFE 2.7-12.0 2.1-10 ≥0.3 ≤0.10 ≥±0.05
Multi-layer plastic tube 2.7-12.0 2.1-10 ≥0.3 ≤0.10 ≥±0.05

Application:

The possible applications of plastic tube are unlimited! It is widely used on vessel auto, motorcycle, bicycle, machinery, textile industrial, medical facility and so on.
